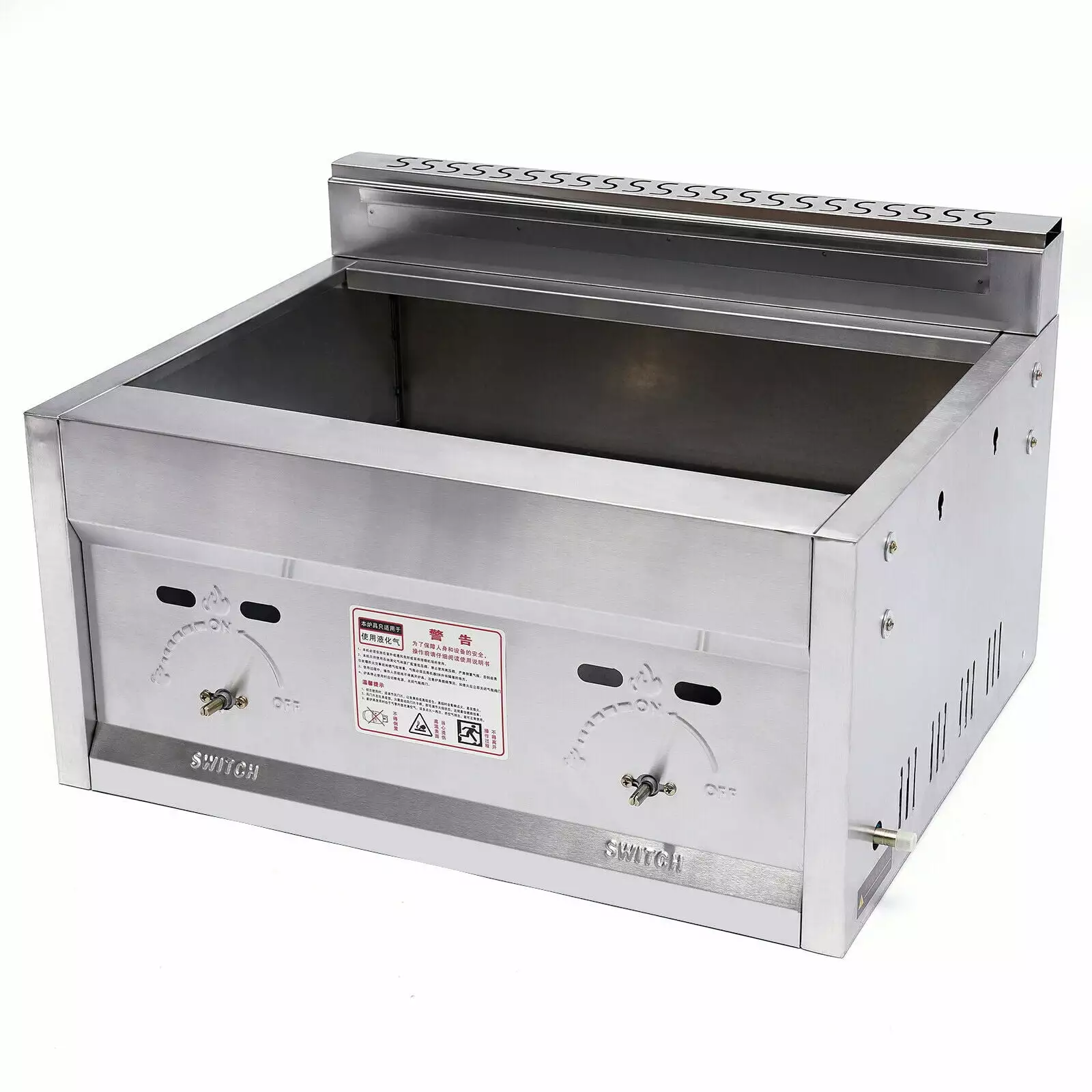

Mkyiongou Deep Fryer Propane Gas Countertop Outdoor Round Infrared Gas Fryer

Description

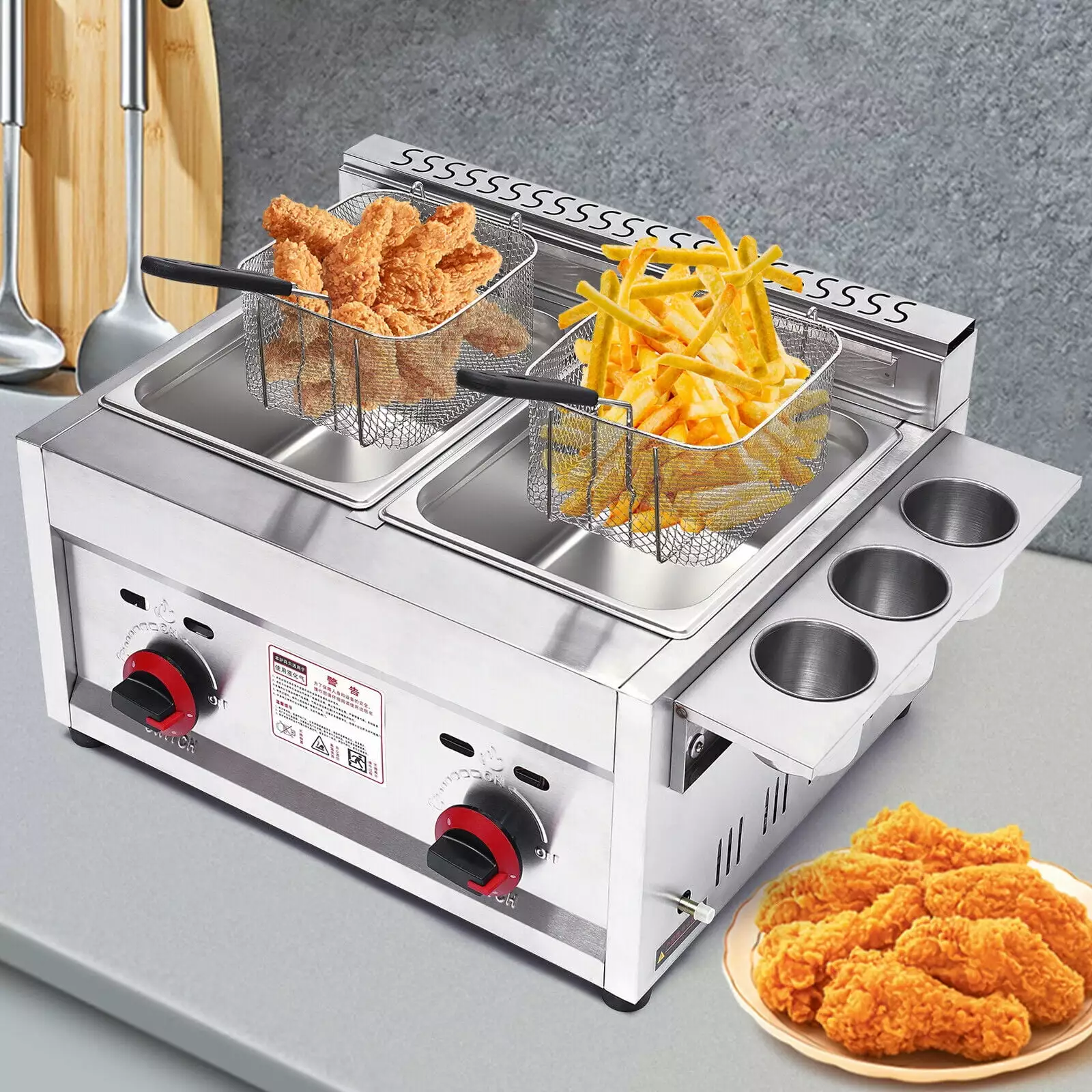

The Double Tank Gas Fryer Heats Quickly and Evenly for Faster Cooking and Maintaining Oil Temperature. Equipped with Two Lids to Prevent Hot Oil from Splashing and Making It Safer to Use. It Is Designed to Meet Your Requirements for Use in Snack Bars. Concession Stands. or Parties. Idea for French Fries. Fish. Chicken Cutlets. Donuts. Onion Rings. Shrimp. and More.

Key Features

Independent Temperature Control: the Two Cylinders Are Equipped with a Switch Respectively. You Can Freely Control and Operate the Two Switches at the Same Time. Using less Time Makes Richer Delicious Foods and Achieves Twice the Result with Half the Effort.

Fast Heating: It Has a Heating Power of up to 18.000 Btu/Hr and an Adjustable Temperature Range of 200-350 Degrees Fahrenheit.

Specification

Material: 430 Stainless Steel

Heating Power: 18000btu/Hr

Furnace: Round Infrared Stove

Temperature Range: 200-350 Degrees Fahrenheit

Frying Basket Size: 18.5*20.5*10.5cm/7.3*8.1*4.1in

Frying Basket Handle Length: 21cm/8.3in

Oil Pan Size: 26*32.5*14.5cm/10.2*12.8*5.7in

Capacity: 6l*2/1.59gal*2

Product Dimensions: 57*47*35cm/22.4*18.50*13.80in

Gross Weight: 15kg/33.07lbs

Net Weight: 13kg/28.66lbs

Type: LPG pressure reducing valve (low pressure valve needs to be purchased by the customer)

How to Install

Fried Baskets

1. Snap the Handle into the Frying Basket Recess.

2. Screw the Head of the Handle Firmly Inward.

Foot Pad

1. Place the Spacer on the Side of the Foot Pad with the Hole.

2. Screw Firmly Through the Spacer and Foot.

3. Put the Foot Pad on the Machine and You Are Done.

How to Use

Connect the Gas Pipeline and Check If It Is Firm.

Turn on the Gas Regulating Valve or the Gas System Switch of the Gas Tank. Lightly Press the Lighter to Rotate and Press (to the Left) About 90 Degrees. a Sound Will Be Heard. and the Electric Spark Will Ignite the Burner to Confirm That the Fire Has Been Ignited. Let Go. the Firepower Is at Its Strongest.

The Adjustment of the Firepower Is Within the Range of 90 Degrees from the Left and Right Upper Corners of the Knob. When the Stove Is Used for the First Time. a Fire May Not Be Able to Ignite. Because the Pipe Is Not Full of Gas. so You Can Repeat the Firing Action Two or Three Times to Remove the Air.

Air Conditioning: All Kinds of Gas Need to Be Mixed with Air for Combustion. Before the Burner Mixing Tube. There Is an Air Regulating Plate for Adjusting the Amount of Extraction Air.

Turn off the Flame: Turn the Knob Back to the Original Vertical Position. and All Flames Can Be Extinguished When You Hear the Reset Sound. After Use. Please Turn off All Switches.

Package Included

1*Gas Fryer

1*Trachea

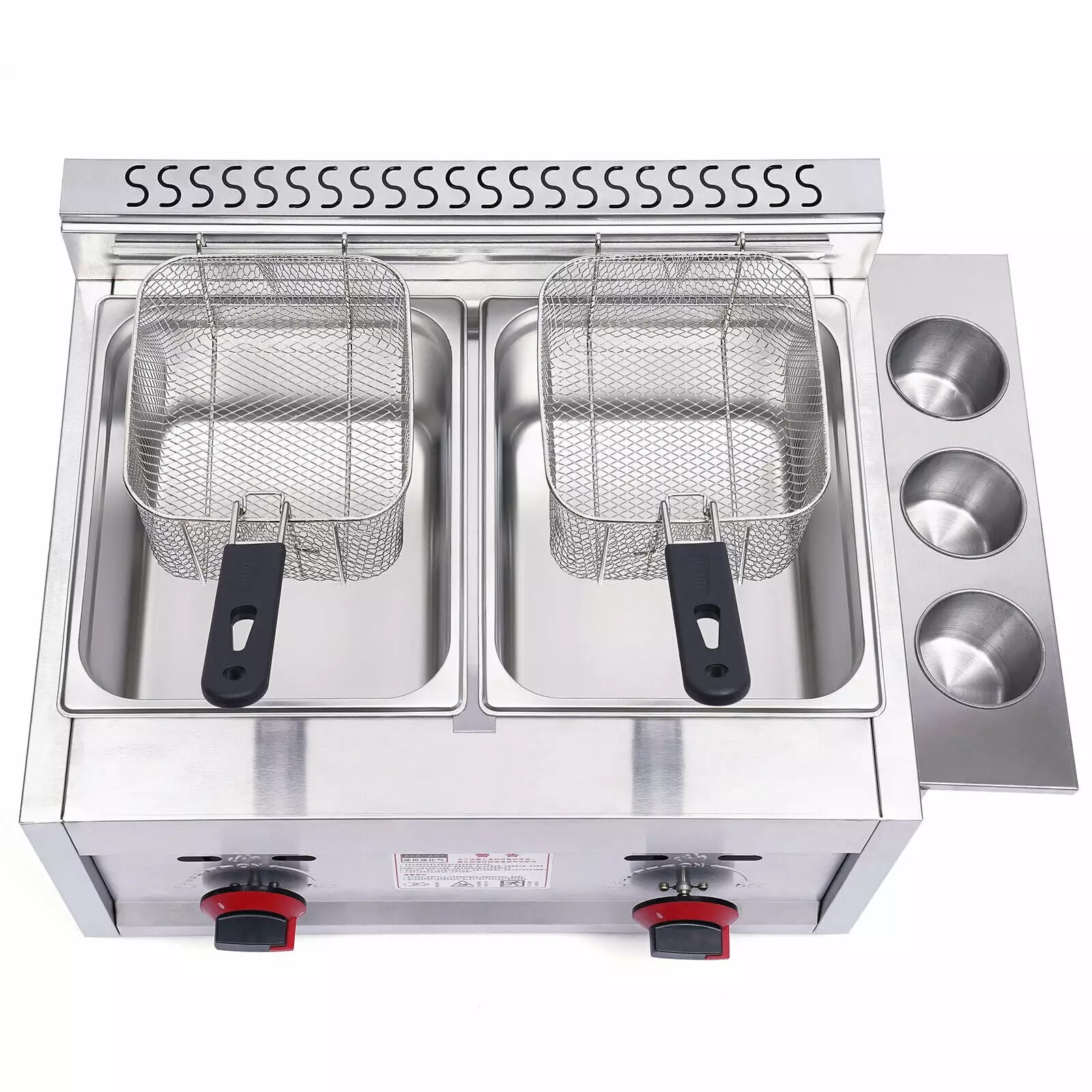

2*Frying Baskets

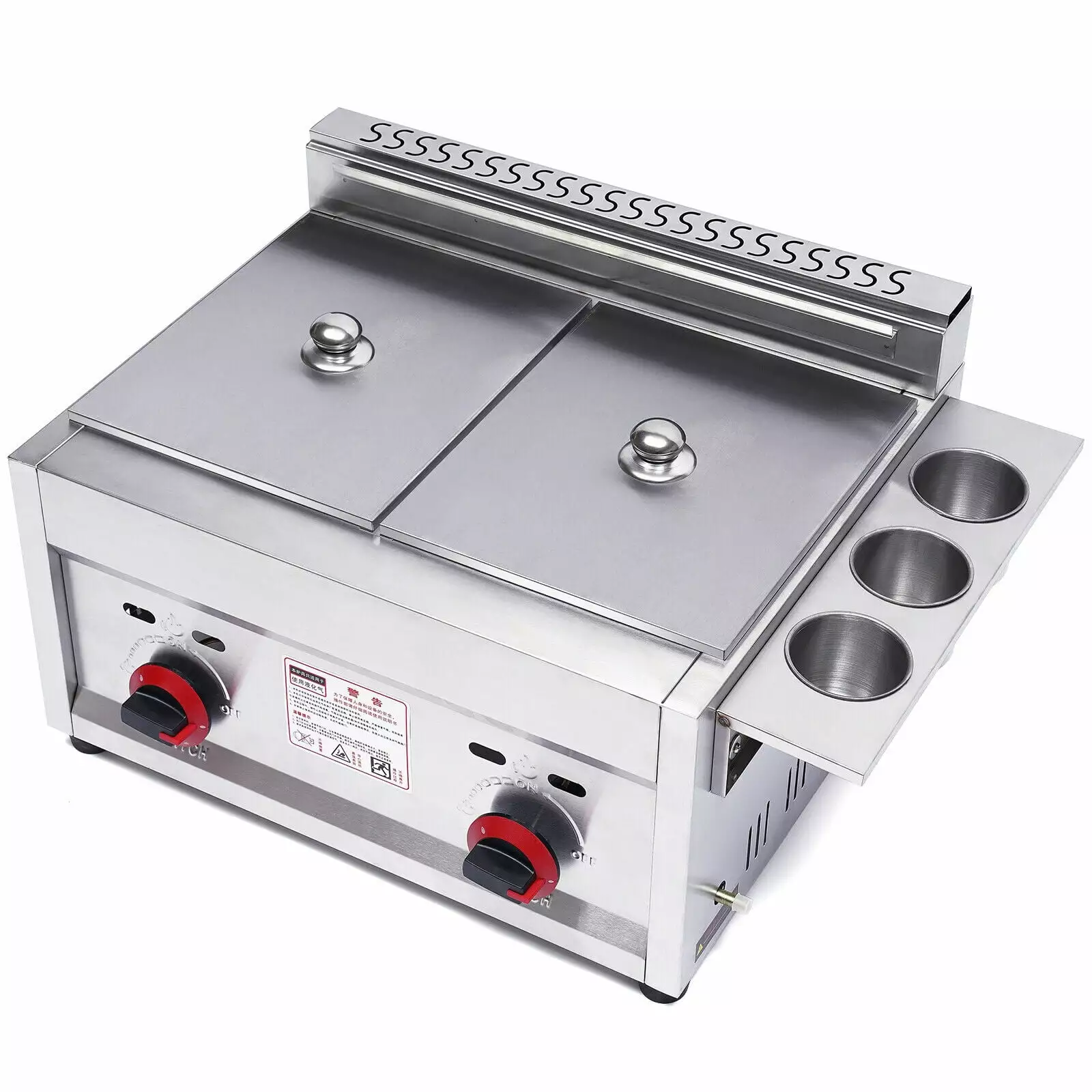

2*Pot Lids

4*Foot Pads

2*Oil Pans

2*Frying Basket Handles

2*Switches

3*Small Buckets

1*Bucket Holder

All Accessories for Installation

Notes

Please Notice That Only Lpg and Low-pressure Valves Are Allowed to Be Used in This Machinethe Low-pressure Valve Is Not Included. the High-pressure Valve Is Forbidden to Be Used. the Gas Cylinder Should Be Strictly Prevented from Being Inverted. Otherwise. It Is Very Easy to Cause an Explosion and Fire Accident and Gas Nozzle Blockage. Gas Cylinders Must Be Placed 2 Meters Away from the Machine in a Place with a Partition Wall.

Please Notice That When Used for the First Time. the Damper Must Be Adjusted to Avoid the Occurrence of Yellow Flame or Flame Separation. Which Will Affect the Ignition or Even Extinguish the Flame.

Please Notice That the Damper Is at the Bottom of the Cooker. the Flame State Can Be Adjusted to Achieve the Best Combustion Effect by Simply Turning the Air Flap Handle.

• Great Durability: Its Body Is Made of High-quality 430 Stainless Steel. Which Is Sturdy and High-temperature Resistant. Greatly Increasing the Service Life of the Machine.
• Detachable Design: the Whole Machine Adopts a Detachable Design. the Lids. Baskets. Handles and Oil Pans Are All Removable for Easy Cleaning.
• Independent Temperature Control: the Two Cylinders Are Equipped with a Switch Respectively. You Can Freely Control and Operate the Two Switches at the Same Time. Using less Time Makes Richer Delicious Foods and Achieves Twice the Result with Half the Effort.
• Safe and Reliable: It Is Made of a Double-layer Steel Plate. Which Can Effectively Insulate Heat. Besides. the Electronic Ignition System Is Safer.
• Metal Stove: It Uses a Ring-shaped Metal Stove. Which Is Not Only Rust-proof but Also Can Make Ring Heating. It Ensures Maximum Contact Between the Flame and the Bottom of the Pan. Avoiding Long Preheating Time or Uneven Heating.
• Large Capacity: It Is Designed with Double Oil Pans and Each Pan Has a Capacity of up to 6l/1.59gal. so It Is Also Ideal for Restaurant Use and Greatly Improves Work Efficiency.
• Fast Heating: It Has a Heating Power of up to 18.000 Btu/Hr and an Adjustable Temperature Range of 200-350 Degrees Fahrenheit. Fast Heating Helps to Keep the Food Better Tasting.
• Easy to Assemble: This gas fryer comes with all the hardware necessary for assembly (exclude pressure reducing valve) for Quick and Easy Assembly. Allowing You to Enjoy Making Gourmet Meals Immediately.
• Protective Packaging: It Uses Foam Wrapping to Make Each Part Accurately Set in It. Effectively Protecting the Whole Product from Damage During Transportation.
